代 号 PART NO | 螺 纹 THREAD | 管子外径 TUBE O.D. | 尺 寸 DIMENSIONS | 压力等级 MPa | ||||||
| E | F | D1 | D2 | L1 | l1 | S1 | S2 | S3 | ||
| 1C-12-14 | M12X1.5 | M14X1.5 | 6 | 8 | 40 | 11 | 14 | 15 | 17 | 31.5 轻系列 L |
| 1C-12-16 | M12X1.5 | M16X1.5 | 6 | 10 | 41 | 12 | 17 | 15 | 19 | |
| 1C-14-16 | M14X1.5 | M16X1.5 | 8 | 10 | 41 | 13 | 17 | 17 | 19 | |
| 1C-12-18 | M12X1.5 | M18X1.5 | 6 | 12 | 42 | 13 | 19 | 15 | 22 | |
| 1C-14-18 | M14X1.5 | M18X1.5 | 8 | 12 | 42 | 13 | 19 | 17 | 22 | |
| 1C-16-18 | M16X1.5 | M18X1.5 | 10 | 12 | 43 | 14 | 19 | 19 | 22 | |
| 1C-16-22 | M16X1.5 | M22X1.5 | 10 | 15 | 44.5 | 15 | 24 | 19 | 27 | |
| 1C-18-22 | M18X1.5 | M22X1.5 | 12 | 15 | 44.5 | 15 | 24 | 22 | 27 | |
| 1C-16-26 | M16X1.5 | M26X1.5 | 10 | 18 | 46 | 15.5 | 27 | 19 | 32 | |
| 1C-18-26 | M18X1.5 | M26X1.5 | 12 | 18 | 46 | 15.5 | 27 | 22 | 32 | |
| 1C-22-26 | M22X1.5 | M26X1.5 | 15 | 18 | 47.5 | 16.5 | 27 | 27 | 32 | |
| 1C-18-30 | M18X1.5 | M30X2 | 12 | 22 | 48 | 17.5 | 32 | 22 | 36 | 16 轻系列 L |
| 1C-22-30 | M22X1.5 | M30X2 | 15 | 22 | 49.5 | 18.5 | 32 | 27 | 36 | |
| 1C-26-30 | M26X1.5 | M30X2 | 18 | 22 | 50 | 18 | 32 | 32 | 36 | |
| 1C-26-36 | M26X1.5 | M36X2 | 18 | 28 | 51.5 | 19 | 41 | 32 | 41 | |
| 1C-30-36 | M30X2 | M36X2 | 22 | 28 | 53.5 | 21 | 41 | 36 | 41 | |
| 1C-30-45 | M30X2 | M45X2 | 22 | 35 | 58.5 | 21 | 46 | 36 | 50 | |
| 1C-36-45 | M36X2 | M45X2 | 28 | 35 | 59 | 21 | 46 | 41 | 50 | |
| 1D-14-16 | M14X1.5 | M16X1.5 | 6 | 8 | 47 | 18 | 17 | 17 | 19 | 63 重系列 S |
| 1D-14-18 | M14X1.5 | M18X1.5 | 6 | 10 | 48 | 17.5 | 19 | 17 | 22 | |
| 1D-16-18 | M16X1.5 | M18X1.5 | 8 | 10 | 48 | 17.5 | 19 | 19 | 22 | |
| 1D-14-20 | M14X1.5 | M20X1.5 | 6 | 12 | 50 | 19.5 | 22 | 17 | 24 | |
| 1D-16-20 | M16X1.5 | M20X1.5 | 8 | 12 | 50 | 19.5 | 22 | 19 | 24 | |
| 1D-18-20 | M18X1.5 | M20X1.5 | 10 | 12 | 51 | 19 | 22 | 22 | 24 | |
| 1D-18-22 | M18X1.5 | M22X1.5 | 10 | 14 | 54 | 20.5 | 24 | 22 | 27 | |
| 1D-20-22 | M20X1.5 | M22X1.5 | 12 | 14 | 54 | 20.5 | 24 | 24 | 27 | |
| 1D-18-30 | M18X1.5 | M30X2 | 10 | 20 | 59.5 | 22 | 32 | 22 | 36 | 40 重系列 S |
| 1D-20-30 | M20X1.5 | M30X2 | 12 | 20 | 59.5 | 22 | 32 | 24 | 36 | |
| 1D-24-30 | M24X1.5 | M30X2 | 16 | 20 | 62.5 | 23 | 32 | 30 | 36 | |
| 1D-24-36 | M24X1.5 | M36X2 | 16 | 25 | 67.5 | 25.5 | 41 | 30 | 46 | |
| 1D-30-36 | M30X2 | M36X2 | 20 | 25 | 71 | 25.5 | 41 | 36 | 46 | |
| 1D-30-42 | M30X2 | M42X2 | 20 | 30 | 74 | 26 | 46 | 36 | 50 | |
| 1D-36-42 | M36X2 | M42X2 | 25 | 30 | 77 | 26.5 | 46 | 46 | 50 | |
| 1D-42-52 | M42X2 | M52X2 | 30 | 38 | 86.5 | 28.5 | 55 | 50 | 60 | 31.5重系列S |
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1C-30-36RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1C-30-36RN. | ||||||||||
公告栏

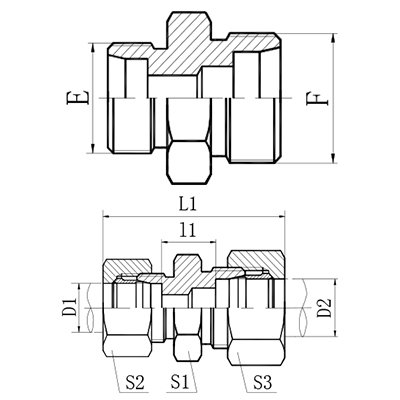

直通变径接头 STRAIGHT REDUCERS
