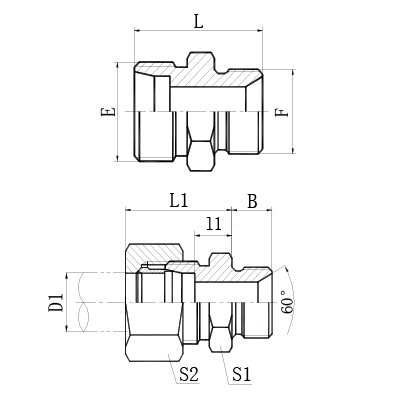

代 号 PART NO | 螺 纹 THREAD | 管子外径 TUBE O.D. | 尺 寸 DIMENSIONS | |||||||
| E | F | D1 | B | l1 | L1 | L | S1 | S2 | ||
| 1CB-12-02 | M12X1.5 | G1/8"X28 | 6 | 10 | 8 | 23 | 24 | 14 | 14 | |
| 1CB-12-04 | M12X1.5 | G1/4"X19 | 6 | 12 | 9 | 24 | 26 | 19 | 14 | |
| 1CB-14-02 | M14X1.5 | G1/8"X28 | 8 | 10 | 8 | 23 | 25 | 14 | 17 | |
| 1CB-14-04 | M14X1.5 | G1/4"X19 | 8 | 12 | 9 | 24 | 27 | 19 | 17 | |
| 1CB-14-06 | M14X1.5 | G3/8"X19 | 8 | 13.5 | 9 | 24 | 28.5 | 22 | 17 | |
| 1CB-16-04 | M16X1.5 | G1/4"X19 | 10 | 12 | 10 | 25 | 28 | 19 | 19 | |
| 1CB-16-06 | M16X1.5 | G3/8"X19 | 10 | 13.5 | 12.5 | 25 | 33 | 22 | 19 | |
| 1CB-16-08 | M16X1.5 | G1/2"X14 | 10 | 16 | 11 | 26 | 32 | 27 | 19 | |
| 1CB-18-04 | M18X1.5 | G1/4"X19 | 12 | 12 | 10 | 25 | 30 | 19 | 22 | |
| 1CB-18-06 | M18X1.5 | G3/8"X19 | 12 | 13.5 | 10 | 25 | 30.5 | 22 | 22 | |
| 1CB-18-08 | M18X1.5 | G1/2"X14 | 12 | 16 | 11 | 26 | 33 | 27 | 22 | |
| 1CB-22-06 | M22X1.5 | G3/8"X19 | 15 | 13.5 | 11 | 26 | 31.5 | 24 | 27 | |
| 1CB-22-08 | M22X1.5 | G1/2"X14 | 15 | 16 | 12 | 27 | 34 | 27 | 27 | |
| 1CB-26-08 | M26X1.5 | G1/2"X14 | 18 | 16 | 11.5 | 28 | 35 | 27 | 32 | |
| 1CB-26-12 | M26X1.5 | G3/4"X14 | 18 | 18.5 | 11.5 | 28 | 35.5 | 32 | 32 | |
| 1CB-30-12 | M30X2 | G3/4"X14 | 22 | 18.5 | 13.5 | 30 | 39.5 | 32 | 36 | |
| 1CB-36-16 | M36X2 | G1"X11 | 28 | 20.5 | 14.5 | 31 | 42.5 | 41 | 41 | |
| 1CB-45-20 | M45X2 | G1.1/4"X11 | 35 | 20.5 | 15.5 | 37 | 45.5 | 50 | 50 | |
| 1CB-52-24 | M52X2 | G1.1/2"X11 | 42 | 23 | 16 | 39 | 50 | 55 | 60 | |
| 1DB-14-04 | M14X1.5 | G1/4"X19 | 6 | 12 | 13 | 28 | 30 | 19 | 17 | |
| 1DB-16-04 | M16X1.5 | G1/4"X19 | 8 | 12 | 13 | 28 | 32 | 19 | 19 | |
| 1DB-16-06 | M16X1.5 | G3/8"X19 | 8 | 13.5 | 15 | 30 | 33.5 | 22 | 19 | |
| 1DB-18-04 | M18X1.5 | G1/4"X19 | 10 | 12 | 12.5 | 29 | 32 | 19 | 22 | |
| 1DB-18-06 | M18X1.5 | G3/8"X19 | 10 | 13.5 | 14.5 | 31 | 33.5 | 22 | 22 | |
| 1DB-18-08 | M18X1.5 | G1/2"X14 | 10 | 16 | 14.5 | 31 | 36 | 27 | 22 | |
| 1DB-20-04 | M20X1.5 | G1/4"X19 | 12 | 12 | 14.5 | 31 | 34 | 22 | 24 | |
| 1DB-20-06 | M20X1.5 | G3/8"X19 | 12 | 13.5 | 14.5 | 31 | 35.5 | 22 | 24 | |
| 1DB-20-08 | M20X1.5 | G1/2"X14 | 12 | 16 | 14.5 | 31 | 38 | 27 | 24 | |
| 1DB-22-08 | M22X1.5 | G1/2"X14 | 14 | 16 | 16 | 34 | 40 | 27 | 27 | |
| 1DB-24-06 | M24X1.5 | G3/8"X19 | 16 | 13.5 | 15.5 | 34 | 37.5 | 27 | 30 | |
| 1DB-24-08 | M24X1.5 | G1/2"X14 | 16 | 16 | 15.5 | 34 | 40 | 27 | 30 | |
| 1DB-24-12 | M24X1.5 | G3/4"X14 | 16 | 18.5 | 17.5 | 36 | 44.5 | 32 | 30 | |
| 1DB-30-12 | M30X2 | G3/4"X14 | 20 | 18.5 | 17.5 | 39 | 48.5 | 32 | 36 | |
| 1DB-36-08 | M36X2 | G1/2"X14 | 25 | 16 | 19 | 43 | 48 | 38 | 46 | |
| 1DB-36-12 | M36X2 | G3/4"X14 | 25 | 18.5 | 19 | 43 | 50.5 | 38 | 46 | |
| 1DB-36-16 | M36X2 | G1"X11 | 25 | 20.5 | 20 | 44 | 52.5 | 41 | 46 | |
| 1DB-42-20 | M42X2 | G1.1/4"X11 | 30 | 20.5 | 21.5 | 48 | 54.5 | 50 | 50 | |
| 1DB-52-24 | M52X2 | G1.1/2"X11 | 38 | 23 | 23 | 54 | 62 | 55 | 60 | |
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DB-20-08RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DB-20-08RN. | ||||||||||
