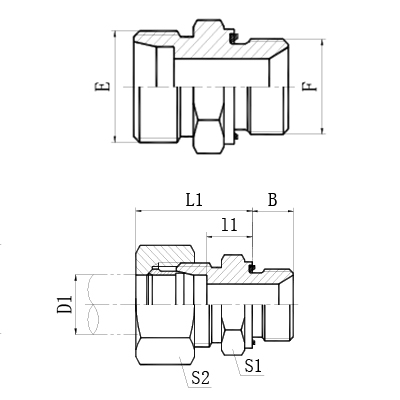

代 号 PART NO | 螺 纹 THREAD | 管子外径 TUBE O.D. | 尺 寸 DIMENSIONS | 压力等级 MPa | ||||||
| E | F | D1 | B | l1 | L1 | S1 | S2 | |||
| 1CB-12-02WD | M12X1.5 | G1/8"X28 | 6 | 8 | 8.5 | 23.5 | 14 | 14 | 31.5 轻系列 L | |
| 1CB-12-04WD | M12X1.5 | G1/4"X19 | 6 | 12 | 10 | 25 | 19 | 14 | ||
| 1CB-14-02WD | M14X1.5 | G1/8"X28 | 8 | 8 | 9 | 24 | 14 | 17 | ||
| 1CB-14-04WD | M14X1.5 | G1/4"X19 | 8 | 12 | 10 | 25 | 19 | 17 | ||
| 1CB-14-06WD | M14X1.5 | G3/8"X19 | 8 | 12 | 11 | 26 | 22 | 17 | ||
| 1CB-16-04WD | M16X1.5 | G1/4"X19 | 10 | 12 | 11 | 26 | 19 | 19 | ||
| 1CB-16-06WD | M16X1.5 | G3/8"X19 | 10 | 12 | 12 | 27 | 22 | 19 | ||
| 1CB-16-08WD | M16X1.5 | G1/2"X14 | 10 | 14 | 13 | 28 | 27 | 19 | ||
| 1CB-18-04WD | M18X1.5 | G1/4"X19 | 12 | 12 | 12 | 27 | 19 | 22 | ||
| 1CB-18-06WD | M18X1.5 | G3/8"X19 | 12 | 12 | 12 | 27 | 22 | 22 | ||
| 1CB-18-08WD | M18X1.5 | G1/2"X14 | 12 | 14 | 13 | 28 | 27 | 22 | ||
| 1CB-22-06WD | M22X1.5 | G3/8"X19 | 15 | 12 | 13 | 28 | 24 | 27 | ||
| 1CB-22-08WD | M22X1.5 | G1/2"X14 | 15 | 14 | 14 | 29 | 27 | 27 | ||
| 1CB-26-08WD | M26X1.5 | G1/2"X14 | 18 | 14 | 14.5 | 31 | 27 | 32 | ||
| 1CB-26-12WD | M26X1.5 | G3/4"X14 | 18 | 16 | 14.5 | 31 | 32 | 32 | ||
| 1CB-30-12WD | M30X2 | G3/4"X14 | 22 | 16 | 16.5 | 33 | 32 | 36 | 16 轻系列 L | |
| 1CB-36-16WD | M36X2 | G1"X11 | 28 | 18 | 17.5 | 34 | 41 | 41 | ||
| 1CB-45-20WD | M45X2 | G1.1/4"X11 | 35 | 20 | 17.5 | 39 | 50 | 50 | ||
| 1CB-52-24WD | M52X2 | G1.1/2"X11 | 42 | 22 | 19 | 42 | 55 | 60 | ||
| 1DB-14-04WD | M14X1.5 | G1/4"X19 | 6 | 12 | 15 | 19 | 17 | 63 重系列 S | ||
| 1DB-16-04WD | M16X1.5 | G1/4"X19 | 8 | 12 | 15 | 30 | 19 | 19 | ||
| 1DB-16-06WD | M16X1.5 | G3/8"X19 | 8 | 12 | 15 | 30 | 22 | 19 | ||
| 1DB-18-04WD | M18X1.5 | G1/4"X19 | 10 | 12 | 14.5 | 31 | 19 | 22 | ||
| 1DB-18-06WD | M18X1.5 | G3/8"X19 | 10 | 12 | 14.5 | 31 | 22 | 22 | ||
| 1DB-18-08WD | M18X1.5 | G1/2"X14 | 10 | 14 | 17.5 | 34 | 27 | 22 | ||
| 1DB-20-04WD | M20X1.5 | G1/4"X19 | 12 | 12 | 16.5 | 33 | 22 | 24 | ||
| 1DB-20-06WD | M20X1.5 | G3/8"X19 | 12 | 12 | 16.5 | 33 | 22 | 24 | ||
| 1DB-20-08WD | M20X1.5 | G1/2"X14 | 12 | 14 | 17.5 | 34 | 27 | 24 | ||
| 1DB-22-08WD | M22X1.5 | G1/2"X14 | 14 | 14 | 19 | 37 | 27 | 27 | ||
| 1DB-24-06WD | M24X1.5 | G3/8"X19 | 16 | 12 | 18 | 36.5 | 27 | 30 | 40 重系列 S | |
| 1DB-24-08WD | M24X1.5 | G1/2"X14 | 16 | 14 | 18.5 | 37 | 27 | 30 | ||
| 1DB-24-12WD | M24X1.5 | G3/4"X14 | 16 | 16 | 20.5 | 39 | 32 | 30 | ||
| 1DB-30-12WD | M30X2 | G3/4"X14 | 20 | 16 | 20.5 | 42 | 32 | 36 | ||
| 1DB-36-08WD | M36X2 | G1/2"X14 | 25 | 14 | 23 | 47 | 41 | 46 | ||
| 1DB-36-12WD | M36X2 | G3/4"X14 | 25 | 16 | 23 | 47 | 41 | 46 | ||
| 1DB-36-16WD | M36X2 | G1"X11 | 25 | 18 | 23 | 47 | 41 | 46 | ||
| 1DB-42-20WD | M42X2 | G1.1/4"X11 | 30 | 20 | 23.5 | 50 | 50 | 50 | ||
| 1DB-52-24WD | M52X2 | G1.1/2"X11 | 38 | 22 | 26 | 57 | 55 | 60 | 31.5重系列S | |
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DB-20-08WD/RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DB-20-08WD/RN. | ||||||||||
公告栏
英管螺纹胶垫密封柱端 BSP THREAD WITH CAPTEVE SEAL
点击图片查看原图
| 品名： | 英管螺纹胶垫密封柱端 BSP THREAD WITH CAPTEVE SEAL |
| 产品型号： | |
| 品牌： | 宁波天依液压器材有限公司 |
| 单价： | 面议 |
| 最小起订量： | - |
| 供货总量： | - |
| 发货期限： | 自买家付款之日起 3 天内发货 |
| 有效期至： | 长期有效 |
| 现货库存数量： | 26 个 |
